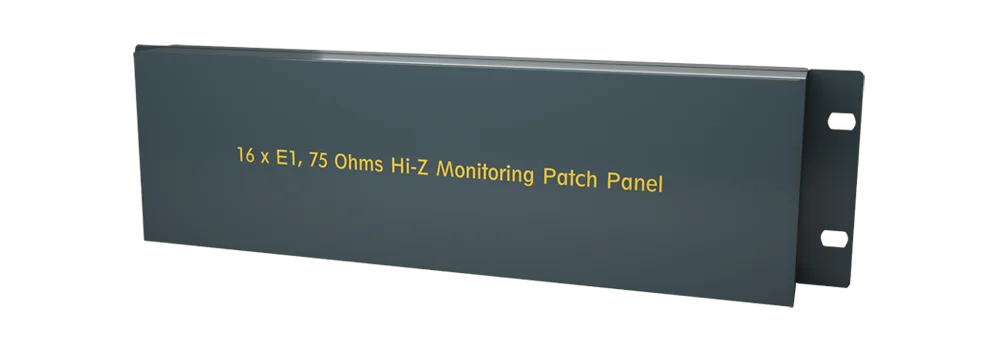

E1, 75 Ohms, 16 Port High Impedance (Hi-Z) Monitoring Patch Panel (75 Ohms – Version)

Description

The E1, 75 Ohms, 16 Port High Impedance Monitoring Patch Panel is primarily designed for applications where E1 circuits are required to be "patched" as well as simultaneously "tapped" for non-intrusive monitoring applications

Data Sheet E1, 75 Ohms, 16 Port High Impedance

Product Part Number: VCL-1230-MON-075-BNCF-16

Product Description: 75 Ohms Monitoring Patch-Panel - used for E1 Patching and Hi-z Monitoring Applications.

Features

  • Cost effective solution.
  • 19 inch rack mount.
  • High quality and cost effective.
  • Small and compact.

Application - Where is it used?

The E1, 75 Ohms, 16 Port High Impedance Monitoring Patch Panel is primarily designed for applications where E1 circuits are required to be "patched" as well as simultaneously "tapped" for non-intrusive monitoring applications.

The E1, 75 Ohms, 16 Port High Impedance Monitoring Patch Panel is primarily designed to patch up to 16, E1 circuits. It also, simultaneously, provides up to 16 high-impedance (Hi-Z) outputs on it's monitoring (MON) port(s) from which, both the transmit (Tx) and the receive (Rx) signals of the patched E1 link can be "tapped non-intrusively" (i.e without disturbing or loading the active E1 link(s) in any manner, and connected to E1 Groomers, Probes or Analysers.

Mechanical Specification

Rack Mounting Standard 19 inch DIN Rack
Height 86 mm
Depth 63 mm
Width 480 mm
Weight 1.4 kg.

E1 - 75 Ohms Patch-Panel is used for E1 Patching and Monitoring Application

75 Ohms Monitoring Patchpanel

75 Ohms Patch Panel with Hi-Z Monitoring Port is used for E1 Monitoring Application.

The BNC Connector is used for Data IN/Data OUT from the 75 Ohms E1 links which are required to be monitored.

Data IN of Patch-Panel (BNC) will be connected to Transmit/Data OUT of E1 Port. Data OUT of Patch-Panel (BNC) will be connected to Receive/Data IN of E1 Port.

Connections
